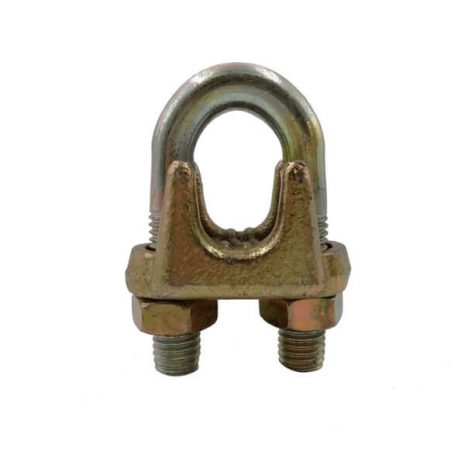

Type A Malleable Wire Rope Clip

Type A malleable wire rope clips are light duty wire rope clip which saddles material is a malleable iron, however, the U-bolts and nuts are A3 carbon steel, they can easily make eye-loop connections or join two wire rope cable ends together. They are a simple accessories and commonly be installed in the shop and the field, we also have DIN1142 Malleable Wire Rope Clip for your option.

Meets the performance requirements of EN BS 13411.

Material: Malleable Iron

Surface: Electro-Galvanized

Size: From 6mm to 50mm

Standard: EN BS EN13411

Brand: Unbranded/Generic

Application: Not for critical applications

Category:
Share On

Specification:

MOQ 1 Pallet, 1 Ton or 3000USD
Material Malleable Iron
Surface finish Wire rope clip saddle, U-bolt and nuts are Electro-galvanized(Zinc Plated)
Sizes From 6mm to 50mm
Technique Procedure Cast
Standard EN BS 13411
HS code 732690

Key Features:

  • Type A malleable wire rope clips are light duty wire rope clip which saddles material is a malleable iron, however, the U-bolts and nuts are A3 carbon steel, they can easily make eye-loop connections or join two wire rope cable ends together. They are a simple accessories and commonly be installed in the shop and the field, we also have DIN1142 Malleable Wire Rope Clip for your option.
  • Meets the performance requirements of EN BS 13411.
  • A type wire rope clamp is a light duty malleable iron wire rope clamp, do not use it for critical applications, it can be only used in fencing, handrails, animal runs, and such as lashing applications, etc. Check out this article about: A Complete Guide to Wire Rope Clips
  • The malleable wire cable clamp approximate failure load is 80%~90% of the cable’s breaking load
    **Malleable iron wire rope clips should only be used in non-critical applications**
  • Wire rope clamp HS Code: 732690

Type A Malleable Wire Rope Clip Details

Packing:

Type A Malleable Wire Rope Clip Packages

How to install wire rope clips?

Commonly wire rope clamp installation is very simple, there’s a well-known saying can help you remember how to attach wire rope clips, that reads “never saddle a dead horse.” Just follow the recommendation ways:

  • The dead-end of the wire rope (the end of the cut side) must be contacted with the U bolt, then the saddle should be on the live end.
  • Keep three or more wire rope clips attached at the end of the wire rope dead end, space between each wire rope clip should be at least 6 times the wire rope diameter.
  • Tighten the wire rope clip closest to the thimble eye loop as possible, and never start from the one farthest from eye separately first.
  • You can see the correct and incorrect ways of installation from the following pictures and find how many wire rope clips to use at one wire rope loop.
  • Check out this article for more about wire rope clamp installation.

Type A Malleable Wire Rope Clip Applications

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.

Light Duty Type A malleable wire rope clip capacity suit for the diameter rope from 6mm to 50mm and meet the requirements of EN BS 13411

Type A Malleable Wire Rope Clip Sketch



Part No. Diameter Rope(mm.) Weight  100PCS (kgs.) Dimensions(mm.)
A B C D E F G
hlt470a0006 6 2.1 22.5 14 17 5 12 14 24.8
hlt470a0008 8 3.7 28 17 21 6 15 16 30.66
hlt470a0010 10 8.5 38 21 28 8 19 20 37.95
hlt470a0012 12 16 45 27 34 10 24 25 47.55
hlt470a0015 15 25 52 32 40 12 29 30 57.15
hlt470a0020 20 43 62 38 46.5 14 36 36 71.73
hlt470a0022 22 60 69 43 51.5 16 40 39 78.73
hlt470a0025 25 82 76 50 56 18 43 44 90.4
hlt470a0028 28 112 85 57 62 20 48 48 96.9
hlt470a0032 32 150 93 61 67 22 55 51 110.4
hlt470a0040 40 254 111 73 81 24 64 62 122.5
hlt470a0045 45 343 123 86 88 27 72 70 139.5
hlt470a0050 50 456 135 95 95 30 80 88 156
