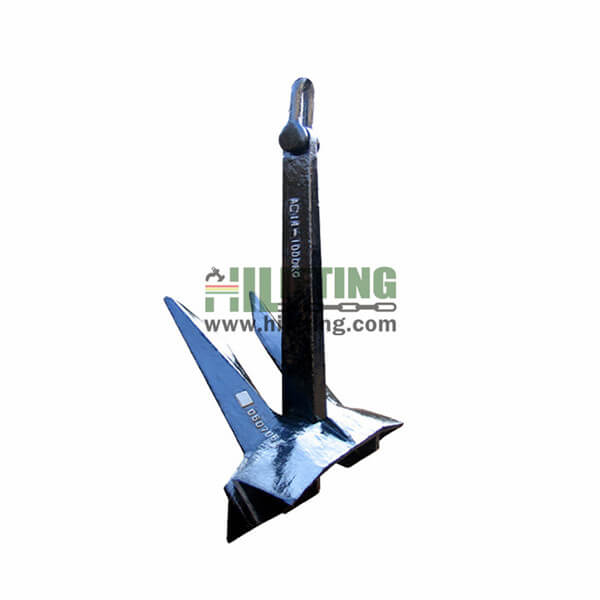

HHP AC-14 Anchor
Hilifting is one of the best AC 14 anchor holding power supplier & manufacturer. AC 14 anchor is one of the most versatile of the high holding power anchor, which is developed from stockless anchor stockless features wide anchor crown, thick and long flukes and longitudinal ribs, less 25% less in weight than a conventional stockless anchor but still has high holding power.
Material: Casting Steel
Surface: Black Bitumen Painting
Weight: 56kg to 25000kg
Certificate: LR, ABS, BV, GL, DNV, KR, NK, IRS and CCS
AC 14 Type Anchor Technical Specifications:
Product name | AC 14 Anchor Holding Power |
Material | Casting Steel |
Surface finish | Black Bitumen Painting |
AC 14 Anchor Holding Capacity | From 56KGS to 25000KGS |
HS code | 731600 |
AC 14 Anchor Holding Capacity:
Weight/Mass (KG) | Size(mm) | |||||||
A | B | C | D | E | F | G | J | |
56KGS | 612 | 298 | 376 | 555 | 109 | 170 | 115 | 24 |
100KGS | 745 | 364 | 458 | 675 | 130 | 200 | 130 | 28 |
180KGS | 909 | 442 | 558 | 822 | 162 | 252 | 160 | 36 |
300KGS | 1075 | 524 | 660 | 975 | 194 | 298 | 192 | 45 |
428KGS | 1213 | 590 | 745 | 1098 | 215 | 336 | 215 | 48 |
675KGS | 1410 | 690 | 868 | 1278 | 250 | 390 | 255 | 60 |
750KGS | 1450 | 700 | 878 | 1315 | 256 | 396 | 255 | 60 |
910KGS | 1560 | 760 | 957 | 1410 | 273 | 430 | 255 | 60 |
970KGS | 1592 | 775 | 978 | 1445 | 284 | 440 | 280 | 62 |
1080KGS | 1650 | 805 | 1014 | 1495 | 294 | 455 | 280 | 62 |
1305KGS | 1760 | 858 | 1082 | 1595 | 313 | 485 | 310 | 68 |
1440KGS | 1818 | 885 | 1118 | 1645 | 324 | 505 | 310 | 68 |
1710KGS | 1925 | 940 | 1184 | 1745 | 343 | 532 | 340 | 74 |
1845KGS | 1975 | 965 | 1215 | 1785 | 347 | 546 | 340 | 74 |
2100KGS | 2065 | 1005 | 1268 | 1865 | 354 | 570 | 380 | 82 |
2475KGS | 2175 | 1062 | 1340 | 1970 | 385 | 605 | 385 | 82 |
2835KGS | 2265 | 1105 | 1393 | 2055 | 399 | 625 | 410 | 90 |
3550KGS | 2455 | 198 | 1508 | 2225 | 438 | 680 | 415 | 100 |
3940KGS | 2540 | 1240 | 1562 | 2300 | 453 | 705 | 450 | 100 |
4500KGS | 2655 | 1295 | 1632 | 2405 | 473 | 735 | 450 | 100 |
4840KGS | 2720 | 1330 | 1670 | 2465 | 490 | 755 | 480 | 110 |
4610KGS | 2858 | 1396 | 1758 | 2590 | 509 | 790 | 500 | 110 |
6000KGS | 2922 | 1426 | 1796 | 2646 | 515 | 810 | 500 | 110 |
6900KGS | 3062 | 1496 | 1884 | 2775 | 545 | 848 | 540 | 117 |
7800KGS | 3190 | 1558 | 1962 | 2890 | 569 | 884 | 600 | 130 |
8300KGS | 3256 | 1590 | 2002 | 2950 | 574 | 902 | 600 | 130 |
9300KGS | 3382 | 1652 | 2080 | 3064 | 606 | 936 | 630 | 135 |
9900KGS | 3452 | 1686 | 2124 | 3128 | 616 | 956 | 640 | 140 |
10575KGS | 3523 | 1720 | 2166 | 3192 | 628 | 976 | 660 | 145 |
11100KGS | 3589 | 1720 | 2166 | 3192 | 628 | 976 | 660 | 145 |
11700KGS | 3650 | 1782 | 2245 | 3308 | 648 | 1010 | 680 | 150 |
12300KGS | 3683 | 1794 | 2260 | 3330 | 655 | 1018 | 700 | 155 |
12900KGS | 3772 | 1842 | 2320 | 3418 | 670 | 1044 | 700 | 155 |
13500KGS | 3830 | 1870 | 2355 | 3470 | 682 | 1060 | 730 | 160 |
14100KGS | 3885 | 1896 | 2389 | 3520 | 689 | 1076 | 730 | 160 |
14700KGS | 3940 | 1924 | 2423 | 3570 | 700 | 1090 | 730 | 160 |
15400KGS | 4002 | 1954 | 2461 | 3626 | 710 | 1108 | 730 | 160 |
16100KGS | 4062 | 1982 | 2498 | 3680 | 721 | 1125 | 770 | 170 |
16900KGS | 4128 | 2016 | 2538 | 3740 | 721 | 1144 | 700 | 170 |
17800KGS | 4200 | 2050 | 2583 | 3806 | 725 | 1162 | 800 | 180 |
18800KGS | 4277 | 2088 | 2630 | 3875 | 729 | 1185 | 800 | 180 |
20000KGS | 4350 | 2101 | 2694 | 3945 | 729 | 1185 | 820 | 199 |
25000KGS | 5046 | 2437 | 3125 | 4577 | 846 | 1375 | 848 | 230 |
Shipping and Payment Term:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
