Hand Winch

Hand winch is a must-have utility to make short pulling distances easier and lifting large or heavy items, can be easily mounted on pickup trucks, ATV’s, boats, trailers, lifting grain augers, and general use for multipurpose hauling or lifting/pulling of light loads such as volleyball nets.

Hilifting is a professional hand winch supplier, for more Transport and Load Restraint, please check our website for hand puller, truck winch, etc to help you choose the winch suitable for your job.

  • Portable, easy-to-mount manually operated winch
  • Compact, lightweight & rugged construction
  • Best cost-effective solution for pulling or lifting
Category:
Share On

Industrial Worm Gear Hand Winch Specifications:

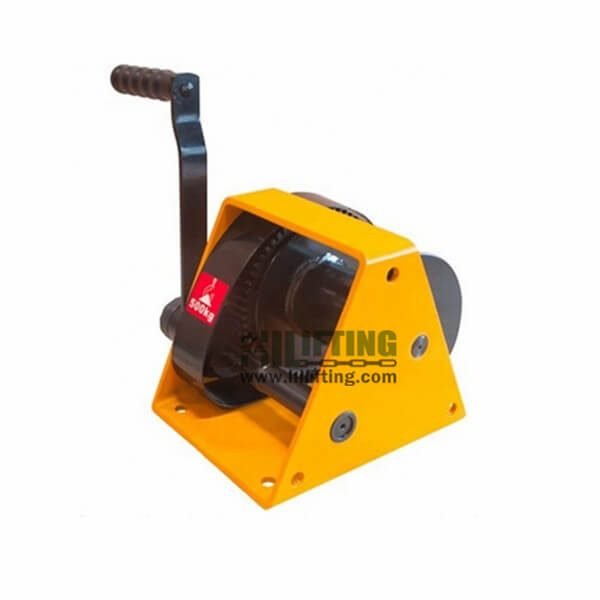

Industrial Hand Winch A Type Sketch

Model HWA150 HWA300 HWA500 HWA1000 HWA2000
S.W.L(kg) 150 300 500 1000 2000
For wire rope(mm) 4 5 6.8 9 13
Length(m) 22 40 25 25 30
Number of layers 6 6 4 4 3
N.W.(kg) 8 16 17 38 60
Capacity(kg) 150 300 500 1000 2000
A(mm) 180 240 240 412 500
B(mm) 325 385 385 485 585
C(mm) 150 200 200 300 325
D(mm) 150 200 200 300 405
E(mm) 350 250 250 350 350
¢x(mm) 4×22 5×40 6.8×20 9×25 13×30
Drive ratio 2.842:1 6.67:1 7.75:1 23.75:1 43.7:1

Industrial Hand Winch A Type

  • Type: Worm Gear Hand Winch
  • Capacity: From 150kgs to 2000kgs
  • Power Source: Hand Manual
  • Wire Rope Diameter: From 4mm to 13mm
  • Wire Rope Length: From 22m to 30m
  • Hand Winch Width: From 200mm to 380mm
  • Hand Winch Length: From 150mm to 350mm
  • Hand Winch Height: From 330mm to 500mm

Industrial Worm Gear Hand Winch Specifications:

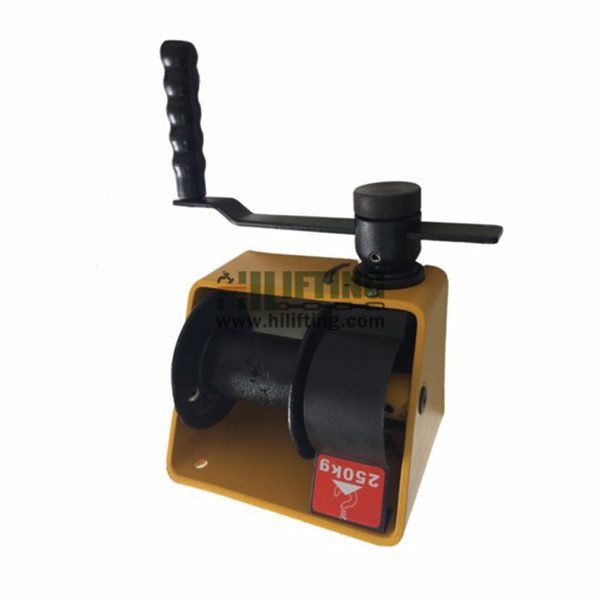

Boat Trailer Hand Winch Sketch

Model HWB250 HWB500 HWB1000 HWB2000
S.W.L(kg) 250 500 1000 2000
For wire rope(mm) 5 6.8 9 13
Length(m) 20 25 35 40
Number of layers 4 4 4 2
N.W.(kg) 10 16 30 55
Capacity(kg) 250 500 1000 2000
A(mm) 150 180 300 340
B(mm) 330 360 490 534
C(mm) 150 180 300 340
D(mm) 200 260 300 395
E(mm) 240 240 370 370
¢x(mm) 5×20 6.8×25 9×35 13×17
Drive ratio 0.6256944 0.8756944 1.0840278 86.6:1

Industrial Hand Winch B Type

  • Type: Worm Gear Hand Winch B Type
  • Capacity: From 250kgs to 2000kgs
  • Power Source: Hand Manual
  • Wire Rope Diameter: From 5mm to 13mm
  • Wire Rope Length: From 20m to 40m
  • Hand Winch Width: From 200mm to 380mm
  • Hand Winch Length: From 150mm to 350mm
  • Hand Winch Height: From 330mm to 500mm

Hand Winch With Friction Brake Sketch Specifications:

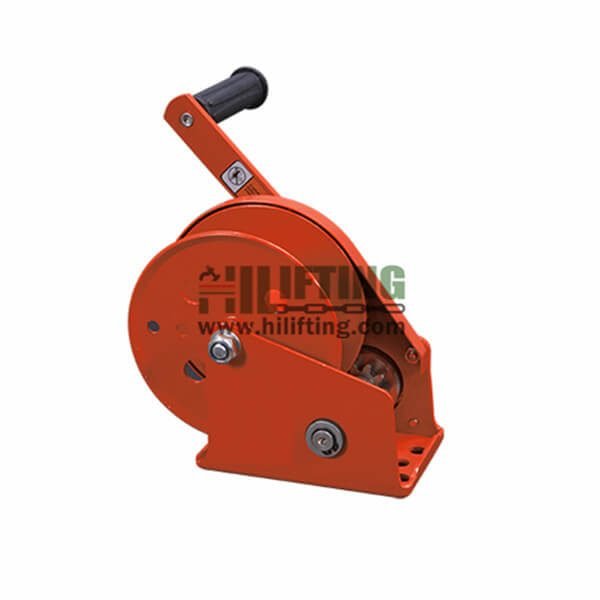

Hand Winch With Friction Brake Sketch

Rated capacity (lb) Test Load (KN) Ratio Hand operated strength (N) A B C D E F G H J R Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)  (kg)
1200 8 4.2:1 180 48 134 51 157 27 273 110 156 184 208 3.7
1800 12 5:1 190 60 180 60 190 27 288 110 203 246 319 8.1
2600 17.5 10:1 190 75 180 63 209 27 307 110 216 294 319 10.3

Hand Winch With Friction Brake

  • Type: Worm Gear Hand Winch Friction Brake
  • Capacity: From 1200lbs to 2600lbs
  • Power Source: Hand Manual



Rated Pull(LBS/KN) Gear Ratio Handle Length(mm) Drum-Hub Dia(mm) Cable Size (mm×m) Size of Color Belt Pieces in Each Box Size of package (cm)
600(270) 3.1:1 165 φ16 φ4.2×8 1.0×50×8m 6 59×26×16
800(360) 3.1:1 175 φ16 φ4.2×8 1.0×50×8m 6 59×26×16
1000(450) 4.1:1 200 φ18 φ4.2×10 1.2×50×8m 6 66×27×18
1200(540) 4.1:1 225 φ18 φ4.2×10 1.4×50×8m 6 66×27×18
1400(630) 4.5:1 225 φ18 φ4.5×10 1.6×50×8m 6 67×27×19
1600(720) 5.1:1 225 φ20 φ4.8×10 1.6×50×8m 4 46×31×20
1800(810) 4.1:1&9.8:1 250 φ20 φ4.8×10 1.8×50×8m 4 52×31×20
2000(900) 4.1:1&9.8:1 250 φ20 φ5×10 1.8×50×8m 4 52×31×20
2500(1100) 5.1:1&12.2:1 275 φ42 φ5×10 2.0×50×8m 4 54×31×22

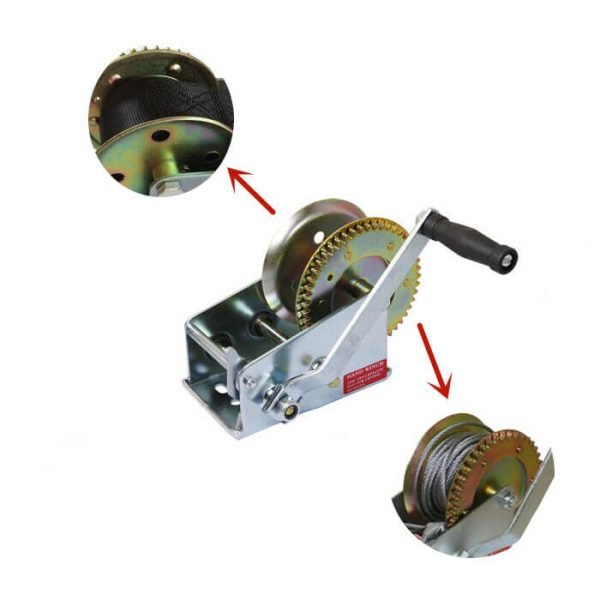

Boat Manual Geared Hand Winch Without Wire Rope & Belt

  • Fairlead Type: Roller
  • Capacity: From 600lbs to 2500lbs
  • Power Source: Hand Manual
  • Brake Type: Automatic Manual
  • Wire Rope Diameter: From 4.2mm to 5mm
  • Wire Rope Length: From 8m to 10m
  • Belt Width: 50mm
  • Belt Length: 8m
