Hand Puller

Hand puller is also known as ratchet puller, power puller, it is a lever-operated manual device, utilizes a ratchet and pawls mechanical configuration to incrementally raise or lower a load or to apply or release tension.

Hilifting is a professional hand puller supplier, for more Transport and Load Restraint, please check our website for hand winch, truck winch, etc to help you choose the winch suitable for your job.

  • Quality ratchet mechanism
  • Forward & reverse load holding mechanism
  • Heavy duty gear, line and hook
Category:
Share On

Hand Power Puller Specifications:

Capacity Type Gear Hook Cable Line Cable Size N.W./PC(kg)
1t – 1 2 1 4.5mm×1.68m 1.9
2t Light duty 1 2 2 4.5mm×1.78m 2
2t Light duty 2 2 2 4.5mm×1.78m 2.2
2t Heavy duty 1 2 2 5.0mm×2.28m 2.2
2t Heavy duty 2 2 2 5.0mm×2.28m 2.8
2t Heavy duty 2 3 2 5.0mm×2.28m 3
4t Light duty 1 2 2 5.0mm×2.80m 4.2
4t Light duty 2 2 2 5.0mm×2.80m 4.5
4t Heavy duty 1 2 2 6.0mm×3.05m 4.8
4t Heavy duty 2 2 2 6.0mm×3.05m 5
4t Heavy duty 2 3 2 6.0mm×3.05m 5.2
2t Alum. 2 3 2 4.5mm×3.66m 3.8
4t Alum. 2 3 2 6.0mm×3.66m 5.5

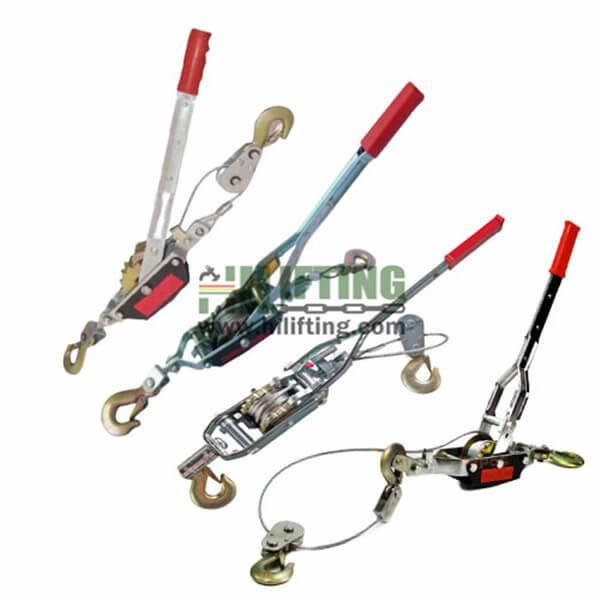

Hand Power Puller

  • Type: Power puller hand winch
  • Capacity: From 1T to 4T
  • Cable Line: Single or double line, only double line has snatch block
  • Gear: Single or double
  • Hook: 2 or 3 pcs safety hooks

Hand Ratchet Puller Specifications:

Capacity(t) Max. Length(mm) Min. Length(mm) Cable Size(mm) N.W.(kg)
1 1210 410 5 3.2
1.5 1400 480 6 4.2
2 1400 480 6 4.3

Hand Ratchet Puller

  • Type: Ratchet strap hand puller
  • Capacity: From 1000kgs to 2000kgs
  • Wire Rope Diameter: From 5mm to 6mm
