Pear Shackle

Hilifting is a professional pear link shackle manufacturer, it is one type of lugless joining shackle, designed to connect the swivel end of the chain cable to the anchor shackle. It consists of a ‘C’ –link with two mating caps, which are is easy to be disassembled and assembled.

Material: Forged Steel

Surface: Black Bitumen Painting / Galvanized

Size: 16-132mm

Certificate: LR, ABS, BV, GL, DNV, KR, NK, IRS and CCS

Category:
Share On

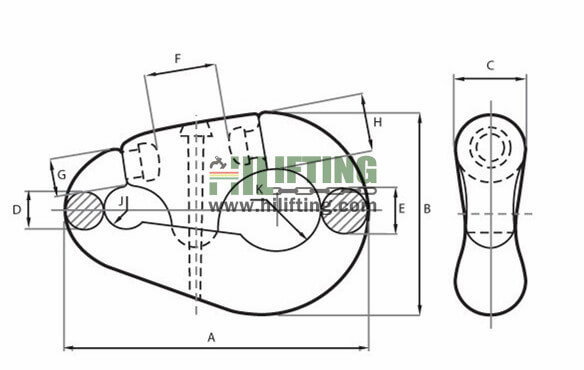

Pear Link Shackle Sketch

Pear Link Shackle Specification:

Product name Pear Link Shackle
Material Forged Steel
Surface finish Black Bitumen Painting / Galvanized
Size From 16mm to 132mm
HS code 73158100

Pear Link Shackle Dimensions:

Chain
dia.(mm)		 A (mm) B (mm) C   (mm) D   (mm) E  (mm) F  (mm) G       (mm) H       (mm) J   (mm) K  (mm) Weight   (kg) Proof Test (kg) Break Test  (kg)
19-24 194 132 38 24 32 57 24 35 17 30 3.6 34000 48500
25-30 238 167 46 30 38 66 33 45 19 35 6.5 53000 75700
32-40 299 206 59 40 48 83 40×45 56 26 43 14.5 914000 131000
42-51 378 260 76 51 64 100 51×60 74 32 52 27 145400 207700
52-60 454 313 92 60 76 121 62×73 88 37 64 49 199600 285200
62-79 562 376 121 79 95 149 86×79 111 48 76 92 332100 474500
81-92 654 419 133 92 124 149 111×102 130×133 54 79 149 434900 621200
94-95 692 435 146 98 130 159 124×137 141 57 83 236 462300 660100
97-102 889 572 191 121 165 191 130×148 181 73 108 386 522100 746000
103-108 940 610 203 127 175 203 156 200 76 111 418 577000 825100
110-114 991 948 216 133 184 216 165×167 210×200 105 114 459 637300 910900

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
