Stainless Steel Closed Body Turnbuckle Toggle And Toggle

Stainless steel closed body turnbuckle toggle and toggle features a closed body type center with flexible two toggles end with a removable clevis pin. Hilifting is a professional rigging screws manufacturer, we can supply high quality AISI 316 closed body turnbuckles with factory price.

Material: AISI 316 / AISI 304

Surface: High polished finish

Size: From M6 to M20

Standard: Toggle Type

Brand: Unbranded/Generic

Application: Lifting, Lashing, Towing

Category:
Share On

Stainless Steel Closed Body Turnbuckle Toggle And Toggle Descriptions:

MOQ 1 Pallet, 1 Ton or 3000USD
Material grade 316 or 304 stainless steel
Surface finish High polished finish
Sizes From M6 to M20
Technique Procedure Body : Reduced Tube / Machining
Toggle :Stamping/Machining/Welding
HS code 732690
  • It is a special type of fitting which is used to tension the stainless steel wire ropes to keep them secured at the right tension.
  • Formed and polished from type 316 stainless steel, which has high durable and corrosion resistance, we also have Stainless Steel Closed Body Turnbuckle Jaw And Jaw for your option.
  • Come with a variety of fittings for each end to suit different applications for wire balustrades, yacht rigging wire and guard rails and more, such as swage fork terminal, swage eye terminal, swage stud terminal, swage toggle terminal, etc.
  • Both toggles ends can rotate almost 360 degrees to fit any directions connections, check this article: Popular options of stainless steel turnbuckle.
  • Toggle and toggle closed body stainless steel turnbuckle HS Code: 732690

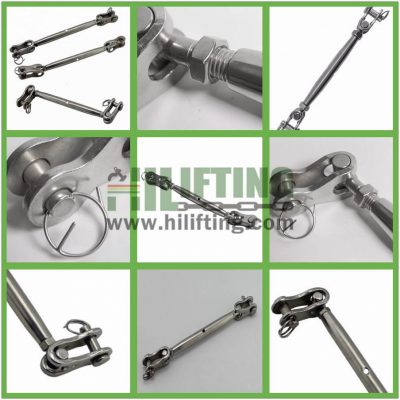

Stainless Steel Toggle and Toggle Terminal European Type Turnbuckle Details

Rigging Screws Toggle And Toggle Packing:

Stainless Steel Toggle and Toggle Terminal European Type Turnbuckle Packages

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.

This Rigging screws toggle and toggle are available in sizes ranging from M6 to M20 to fit every project and are made from grade 316 stainless steel for exterior high chloride environments, so these toggle turnbuckles are heavy duty and reliable.

Stainless Steel Toggle and Toggle Terminal European Type Turnbuckle Sketch

Part No. Size  (mm.) Dimensions(mm.) WT (kgs.)
D L1 L2 A H
hlt0004-0006 M6 6 160 230 7 15 0.1
hlt0004-0008 M8 8 190 265 10 20 0.191
hlt0004-0010 M10 9 230 320 12 25 0.399
hlt0004-0012 M12 12 280 390 13 30 0.63
hlt0004-0016 M16 16 370 510 17 40 1.45
hlt0004-0020 M20 19 430 570 20 45 *
