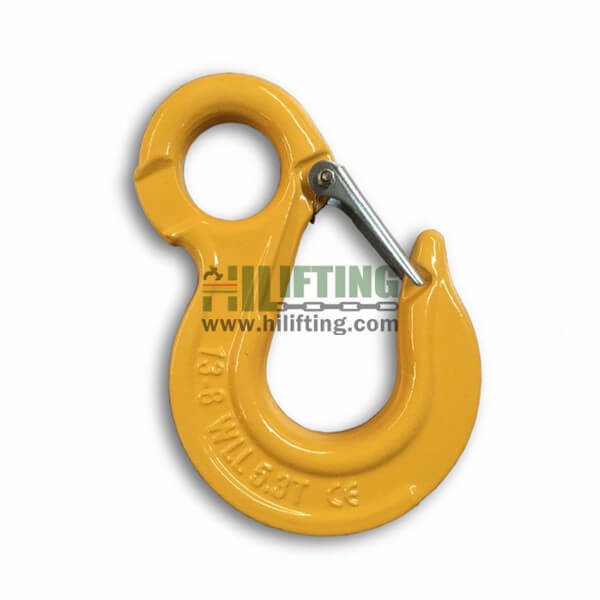

G80 European Type Eye Sling Hook
G8 eye sling hooks are made from quenched and tempered alloy steel for high tensile strength and ductility, Proof tested to 2.5 times the W.L.L, ideal for overhead lifting purposes. It features a safety latch where the groove on the hook fixing the safety latch which is safer than other hooks, we also have G80 clevis sling hook for your option.
Material: Forged Alloy Steel
Surface: Powder plastifed (Red / Yellow)
Size: From 6mm to 32mm
Safety Factor: 4:1
Application: Overhead Lifting, Lashing, Towing
G80 Alloy Eye Sling Hook Specifications:
| MOQ | 1 Pallet, 1 Ton or 3000USD |
| G80 alloy eye sling hook material | Alloy Steel |
| Surface finish | Powder plasticized |
| G80 alloy eye sling hook sizes | From 6mm to 32mm |
| Technique Procedure | Forged super alloy steel- Quenched and Tempered Breakage test 100% magnaflux crack detection |
| Safety Factor | 4:1 for chain sling |
| G80 alloy eye sling hook HS code | 732690 |
Grade 80 Alloy Eye Sling Hook Descriptions:
- G80 alloy eye sling hook is stamped with “G80” or “8” for easy identified and suitable for EN818-2 G80 chain.
- Proof test at 2.5 times Working Load Limit, Breaking Load is 4 times the Working Load Limit.
- G80 alloy clevis grab hook HS code: 732690
Grade 80 Alloy Eye Sling Hook Workshop:
G8 Alloy Eye Sling Hook With Safety Latch Packing:
Shipping and Payment Term:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
Grade 80 Forged eye sling hook sizes are from 6mm to 32mm, also available in standard as well as customized sizes.
| Part No. | Size (mm.) | Weight Per PC (kgs.) | WLL (Ton) | B.L (Ton) | Dimensions(mm.) | ||||
| A | B | E | D | L | |||||
| hlt84s0130006 | 6 | 0.3 | 1.12 | 4.48 | 20 | 9 | 24 | 21 | 108 |
| hlt84s0130078 | 7/8 | 0.4 | 2 | 8 | 25 | 11 | 30 | 26 | 133 |
| hlt84s0130010 | 10 | 0.9 | 3.15 | 12.6 | 38 | 15 | 34 | 39 | 167 |
| hlt84s0130013 | 13 | 1.7 | 5.3 | 21.2 | 43 | 19 | 39 | 54 | 213 |
| hlt84s0130016 | 16 | 3.2 | 8 | 32 | 50 | 23 | 46 | 64 | 255 |
| hlt84s0131820 | 20 | 5.8 | 12.5 | 50 | 62 | 24 | 40 | 80.4 | 305 |
| hlt84s0130022 | 22 | 8.5 | 15 | 60 | 62 | 32 | 71 | 100 | 348 |
| hlt84s0130026 | 26 | 13 | 21.2 | 84.8 | 64 | 35 | 81 | 108 | 394 |
| hlt84s0130032 | 32 | 17 | 31.5 | 126 | 88 | 37 | 102 | 112 | 480 |
