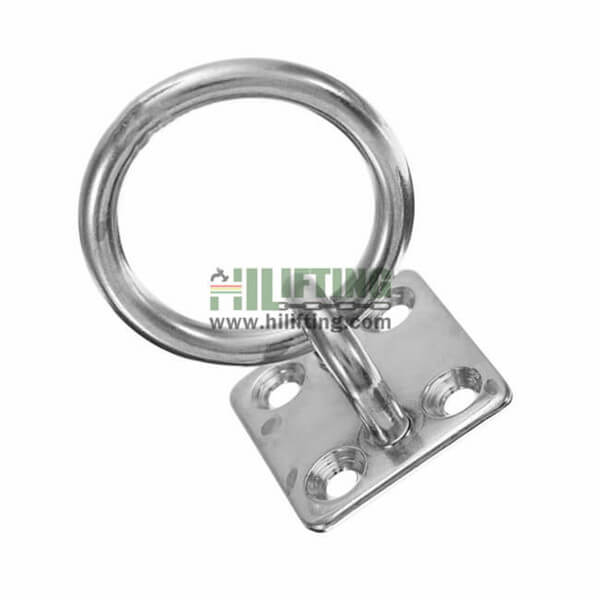

Stainless Steel Square Eye Plate With Ring

Stainless steel square eye plate with ring is made from AISI 316 marine grade stainless steel, great for indoor, outdoor use, gardening, decking or architectural rigging and marine applications. It added an integrated ring on the eye plate which can secure the ropes into the eye with a snap hook or shackle.

Material: AISI 316 / AISI 304

Surface: High polished finish

Size: From 5mm to 10mm

Standard: Square Eye Plate With Ring Type

Brand: Unbranded/Generic

Application: Lifting, Lashing, Towing

Category:
Share On

Stainless Steel Square Eye Plate With Ring Descriptions:

MOQ 1 Pallet, 1 Ton or 3000USD
Material grade 316 or 304 stainless steel
Surface finish High polished finish
Sizes From 5mm to 10mm
Technique Procedure Cast
HS code 732690
  • Perfect for chains or wire ropes with making garden features, securing gates.
  • For using on sailing boats and more, due to the diamond pad shape with four holes on the plate.
  • Can be used for a huge variety of applications from indoor to outdoor use, is ideal for holding up a sun sail shades, or lashing points or mooring plates.
  • Stainless steel eye plate square pad ring HS Code: 732690

Stainless Steel Square Eye Plate with Ring Details

Packing:

Stainless Steel Square Eye Plate with Ring Packages

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.

Stainless eye plate with square pad ring type is available in sizes ranging from 5mm to 10mm, has huge variety of applications, commonly used in great for tying off light loads, fenders, etc.

Stainless Steel Square Eye Plate with Ring Sketch

Part No. Size  (mm.) Dimensions(mm.) WT(kgs.)
D A B H h w d A1 L
hlt0078-0005 5 5 30 35 20 12 13 4.5 5 30 0.041
hlt0078-0006 6 6 35 40 26 17 17 4.5 6 35 0.069
hlt0078-0008 8 8 40 50 32 21 21 6.2 8 45 0.137
hlt0078-0010 10 10 48 60 39 26 26 6.2 10 50 0.218
