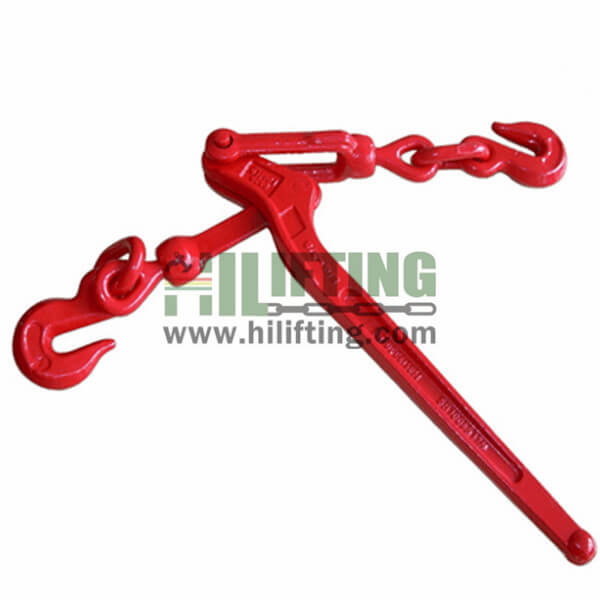

Lever Type Load Binder 150
Wetop lever type load binder 150 meets U.S. Federal Specification and is great for securing heavy equipment, lashing, binding, anchoring, and tie-down large loading.
Sizes range from 1/4″-5/16″ to 1/2”-5/8”, and the safety factor is 3.5 :1.
Material: High Tensile Steel
Surface: Powder Coating
W.L.L: From 2200 lbs to 13000 lbs
Size: From 1/4″-5/16″ to 1/2″-5/8″
Standard: US Type
Brand: Unbranded/Generic
Application: Not For Overhead Lifting, Only Lashing.
Lever Type Load Binder Specifications:
| MOQ | 1 Pallet, 1 Ton or 3000USD |
| Load binder material | Alloy Steel |
| Surface finish | Hot Dipped Galvanized/Powder coated |
| Load binder sizes | From 1/4″-5/16″ to 1/2”-5/8” |
| Technique Procedure | Drop Forged, Machining, Quenched and Tempered |
| Safety Factor | 3.5 : 1 |
| Load binder HS code | 820559 |
Key Features:
- Also called lever chain load binder, truck load binders, they are designed a long handle with a heat-treated steel hook on each end, providing excellent leverage, can quickly tighten the heavy load easily, without extra tools, we also have ratchet load binder for your option.
- Made from alloy Steel, then drop forged, machining, quenched & tempered.
- Check out this article about: Chain Binder Tips To Consider Before Buying.
- Load binder HS code: 820559
Packing:
2 tips to consider before buying load binders
- Load binder size
- Load binders quantities
- Check this useful article for the details.
Shipping and Payment Term:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
.
The lever type load binder pairs with chain size from 1/4″(Grade 70 Chain)-5/16″(Grade 43 Chain) to 1/2″(Grade 70 Chain)-5/8″(Grade 43 Chain) , has working load limit from 2200 lbs to 13000 lbs.
| Part No. | Min-Max Chain Size (in.) | Working Load Limited (lbs.) | Proof Load (lbs.) | Min Ultimate Load (lbs.) | Weight/Each (kgs.) | Handle Length (in.) | Dimensions (in.) | ||||||
| A | B | C | D | E | F | G | |||||||
| hlt1500068 | 1/4-5/16 | 2200 | 4400 | 7800 | 1.600 | 11.42 | 18.50 | 17.30 | 14.17 | 11.42 | 8.27 | 8.07 | 0.35 |
| hlt1500810 | 5/16-3/8 | 5400 | 10800 | 19000 | 4.773 | 15.43 | 25.20 | 23.20 | 19.49 | 15.55 | 11.22 | 11.22 | 0.51 |
| hlt1500810A | 5/16-3/8 | 6600 | 13200 | 19800 | 4.891 | 17.24 | 28.50 | 26.38 | 22.05 | 17.64 | 12.99 | 12.20 | 0.59 |
| hlt1501013 | 3/8-1/2 | 9200 | 18400 | 33000 | 5.864 | 17.24 | 28.50 | 26.38 | 22.05 | 17.64 | 12.99 | 12.20 | 0.59 |
| hlt1501316 | 1/2-5/8 | 13000 | 26000 | 46000 | 6.536 | 21.00 | 33.86 | 30.12 | 25.87 | 20.87 | 14.37 | 14.37 | 0.74 |
