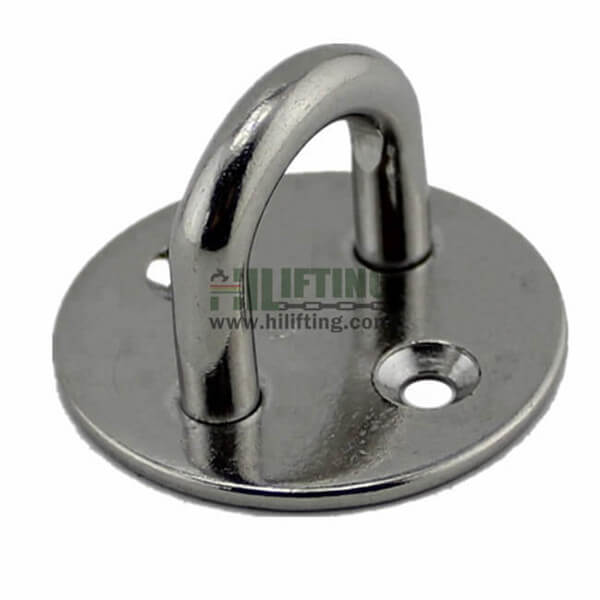

Stainless Steel Round Pad Eye Plate

Stainless steel round pad eye plate also is known as base plates feature a circular base plate on the plate with two countersunk holes, the mounting plates are used for attaching staysails and reefing blocks to boats. Hilifting can also supply Stainless Steel Oblong Pad Eye Plate for your option.

Material: AISI 316 / AISI 304

Surface: High polished finish

Size: From 5mm to 8mm

Standard: Round Pad Eye Plate Type

Brand: Unbranded/Generic

Application: Lifting, Lashing, Towing

Category:
Share On

Stainless Steel Round Pad Eye Plate Descriptions:

MOQ 1 Pallet, 1 Ton or 3000USD
Material grade 316 or 304 stainless steel
Surface finish High polished finish
Sizes From 5mm to 8mm
Technique Procedure Cast
HS code 732690
  • Made from AISI 316 marine grade stainless steel.
  • Can be used in shade structures, architectural rigging, wire rope, marine, and general-purpose applications.
  • Stainless round eye pad plate HS Code: 732690

Stainless Steel Round Eye Plate Details

Packing:

Stainless Steel Round Eye Plate Packages

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.

Stainless steel round pad eye plate is available in sizes ranging from 5mm to 8mm, has huge variety of applications, commonly used in great for tying off light loads, fenders, etc.

Stainless Steel Round Eye Plate Sketch



Part No. Size  (mm.) Dimensions(mm.) WT(kgs.)
D A1 A2 H h A
hlt0073-0005 5 5 33 18 20 12 13 0.023
hlt0073-0006 6 6 40 23 26 17 17 0.038
hlt0073-0008 8 8 50 29 32 21 21 0.067
