G80 US Type Forged Master Link Assembly A345
Share on:

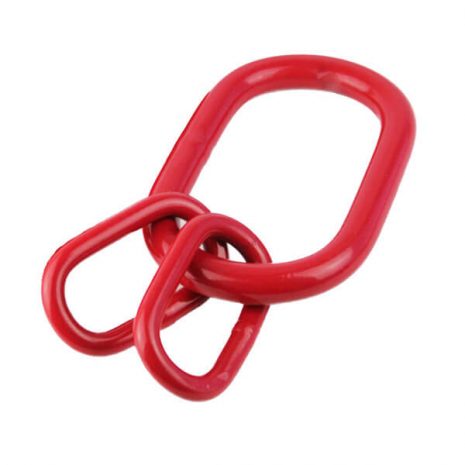

G80 US Type Forged Master Link Assembly

Grade 80 master link assembly is designed for triple and quad branch slings, we also have European type master link assembly for your option.

It consists of a forged oblong master link and two welded master sub link, suitable for multiple leg slings. It is a high quality piece of lifting gear, mainly used in overhead lifting, picking, placing, and towing applications.

Material: Forged Alloy Steel

Surface: Powder plastifed (Red / Yellow)

W.L.L: From 4.1 tons to 40.3 tons

Size: From 3/4″ to 2″

Safety Factor: 5:1 / 4:1

Brand: Unbranded/Generic

Application: Overhead Lifting, Lashing, Towing

Get A free Quote

US type Grade 80 Master Link Assembly Specifications:

MOQ 1 Pallet, 1 Ton or 3000USD
Master link assembly material Alloy Steel
Surface finish Powder plasticized
Master link assembly sizes From 3/4″ to 2″
Technique Procedure Forged super alloy steel- Quenched and Tempered Breakage test
100% magnaflux crack detection
Safety Factor 5 : 1 for rope sling / 4:1 for chain sling
Master link assembly HS code 732690

US type G80 Alloy Forged Master Link Assembly Descriptions:

  • Stamped with “G80” or “8” for easy identified and suitable for the chain slings, pressing flat only on request, which can be used with Grade 80 omega link.
  • Proof test at 2.5 times Working Load Limit, safety factor is 5 : 1 for rope sling or 4:1 for chain sling.
  • Master link assembly HS code: 732690

G80 US Type Master Link Assembly A345 Details

G80 Alloy Master Link Assembly Packing:

G80 US Type Master Link Assembly A345 Packages

G8 Alloy Steel Master Link Assembly Application:

G80 US Type Master Link Assembly A345 Applications

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.

Grade 80 alloy chain master link assembly sizes are from 3/4″ to 2″, also available in standard as well as customized sizes.

G80 US Type Master Link Assembly A345 Sketch

Technical Specification:

Product name G80 Forged Master Link Assembly
Material Alloy Steel
Surface finish Powder plasticized
Size From 3/4″ to 2″
Technique Procedure Forged super alloy steel- Quenched and Tempered Breakage test
100% magnaflux crack detection
Safety Factor 5 : 1 for rope sling / 4:1 for chain sling
HS code 732690
Part No. Size  (in.) Weight  Per PC (kgs.) WLL(Ton) B.L (Ton) Dimensions(mm.)
A B D a b d
hlt840920034 3/4″ 1.55 4.1 20.5 140 70 20 85 40 14
hlt840920001 1″ 3.29 8.4 42 178 89 25 100 60 18
hlt840920114 1-1/4″ 7.18 14.1 70.5 220 110 32 100 60 22
hlt840920112 1-1/2″ 12.91 21.3 106.5 267 135 38 180 100 28
hlt840920134 1-3/4″ 21.25 33.3 166.5 305 152 45 180 100 35
hlt840920002 2″ 30.34 40.3 201.5 356 178 50 180 100 38
