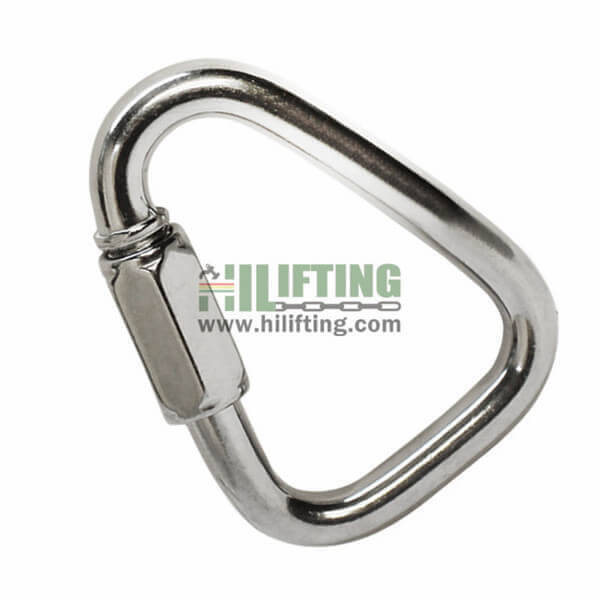

Stainless Steel Delta Quick Link

Stainless steel delta quick link is also known as a triangle quick link, useful for having a distribution of forces in three directions. The long locking screw on the side of the quick link makes it easily removable with fingers, requiring no tools, Hilifting also have Stainless Steel Wide Jaw Quick Link for your option.

Material: AISI 316 / AISI 304

Surface: High polished finish

Size: From 3.5 mm to 14 mm

Brand: Unbranded/Generic

Application: Lifting, Lashing, Towing

Share On

Stainless Steel Delta Quick Link Key Features:

MOQ 1 Pallet, 1 Ton or 3000USD
Material grade 316 or 304 stainless steel
Surface finish High polished finish
Sizes From 3.5mm to 14mm
Technique Procedure Cast
HS code 732690
  • Manufactured using superior grade raw material marine grade stainless steel are more tough, durable, resistant to corrosion than galvanised quick links.
  • They can quick-locking chain repair connectors with a screw lock nut to provide a strong connection securing rings and loops to join two pieces of stainless steel link chains together.
  • We offer from small to large size, the smallest quick link may be used on the wallet, bags, horse riding tack, sports equipment, and belts. The thicker, heavy duty quick link is commonly used for ships.
  • Stainless delta quick link HS Code: 732690

Stainless Steel Quick Link Delta Shaped Details


Stainless Steel Quick Link Delta Shaped Packages

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.

Stainless delta chain quick link are available in sizes ranging from 3.5mm to 14mm, they’re ideal for chain display systems, sign and light hanging, marine, security, architectural, decorative and many more applications.

Stainless Steel Delta Shaped Quick Link Sketch


Part No. Size  (mm.) Dimensions(mm.) W.L.L (lbs.)
A L1 L2 F
hlt0111-0305 3.5 3.5 37 31 5 120
hlt0111-006A 6 6 47 40 6 450
hlt0111-006B 6 6 56 47 7.5 600
hlt0111-0008 8 8 73 56 10 1100
hlt0111-0010 10 10 87 66 12 1500
hlt0111-0012 12 12 104 75 15 1650
hlt0111-0014 14 14 122 86 19 1900
