Project Description

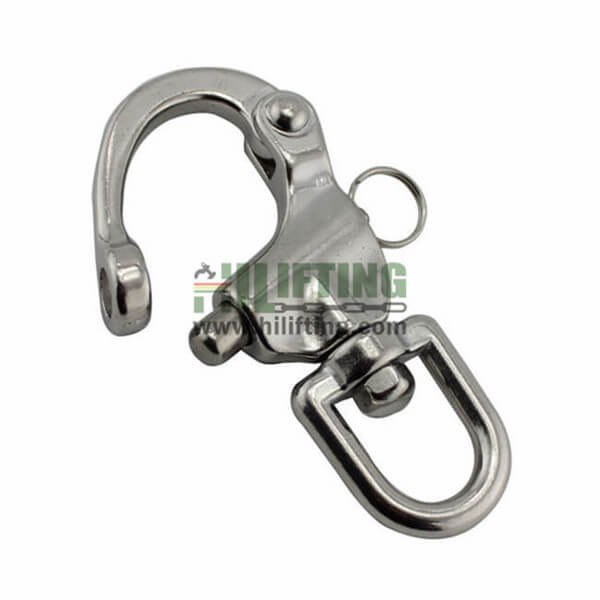

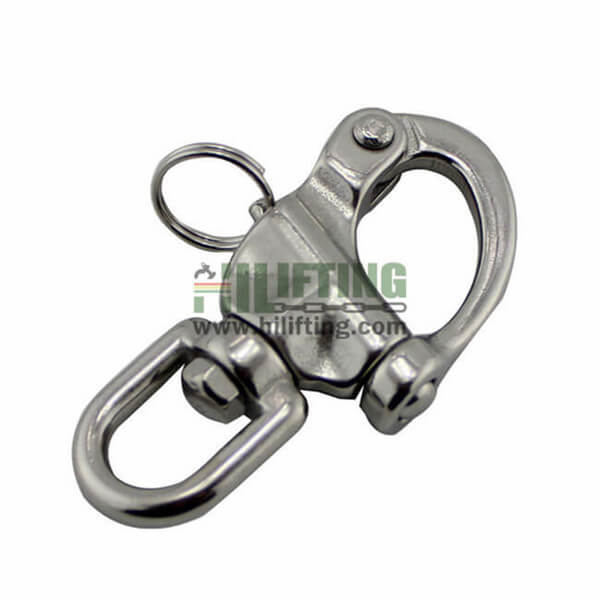

Stainless Steel Swivel Eye Snap Shackle
Stainless steel swivel snap shackle is designed for spinnaker halyards and sailing boats, it features a high polished finish, ideal for yachting, marine, halyards and external applications. We also have Stainless Steel Swivel Jaw Snap Shackle for your option.
Material: AISI 316 / AISI 304
Surface: High polished finish
Size: 70mm, 87mm, and 128mm
Type: Stainless Steel Swivel Eye Snap Shackle
Brand: Unbranded/Generic
Application: Lifting, Lashing, Towing
Stainless Steel Swivel Eye Snap Shackle Descriptions:
MOQ | 1 Pallet, 1 Ton or 3000USD |
Material | grade 316 or 304 stainless steel |
Surface finish | High polished finish |
Sizes | 70mm, 87mm, and 128mm |
Technique Procedure | Cast |
HS code | 732690 |
- Made from grade 316 or 304 stainless steel, mainly for preventers, uphauls, downhauls, outhauls and control lines, check this article: What Are The Different Types of Shackles?
- Can pair with wire ropes or fibre ropes, for total durability and safety they all come equipped with a sprung plunger pin for quickly released to open and lock.
- Swivel eye snap stainless steel shackles HS Code: 732690
Packing:
Shipping and Payment Term:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
Swivel eye snap stainless steel shackles wholesale sizes are available in 70mm, 87mm, and 128mm can rotates 360 degrees, ideal for marine or industrial use.
Part No. | Size (mm.) | Dimensions(mm.) | WT (kgs.) | ||
L | A | B | |||
hlt0063-0012 | 70 | 70 | 12 | 12 | 0.058 |
hlt0063-0016 | 87 | 87 | 16 | 16 | 0.111 |
hlt0063-0022 | 128 | 128 | 22 | 22 | 0.275 |
