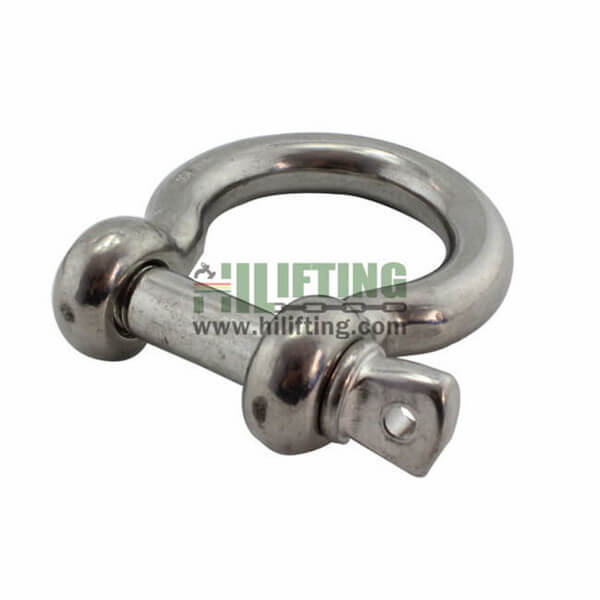

Stainless Steel European Type Large Bow Shackle
Stainless Steel 316 European Commercial Large Bow Shackle
Share on:

European Type Stainless Steel Bow Shackle

European type stainless steel bow shackle is easy to attachment and detachment due to a hole in the pin of the anchor shackle, it allows for the shackle to be wired shut. It is made from marine-grade stainless steel, will not harm humans, birds or mammals which might be adversely affected by zinc in the less-expensive galvanised fittings, we also have European Type Stainless Steel D Shackle for your option.

Material: AISI 316 / AISI 304

Surface: High polished finish

Size: From 4 mm to 36 mm

Type: Stainless Steel Large Bow Shackle

Brand: Unbranded/Generic

Application: Lifting, Lashing, Towing

Get A free Quote

European Type Stainless Steel Bow Shackle Descriptions:

MOQ 1 Pallet, 1 Ton or 3000USD
Material grade 316 or 304 stainless steel
Surface finish High polished finish
Sizes From 4 mm to 36 mm
Technique Procedure Cast
HS code 732690
  • Different types of shackles have different applications, check this article: What Are The Different Types of Shackles?
  • Ideal for securing blocks and tackle, mooring and anchoring in harsh marine applications.
  • EN type stainless steel bow shackle HS Code: 732690

Stainless Steel European Commercial Large Bow Shackle Details

Packing:

Stainless Steel European Commercial Large Bow Shackle Packages
  • Useful shackle inspection checklist:
    • Shackles must always be inspected for wear, distortion, and damage before use. If the pin or bow is worn, distorted or damaged, discard the shackle.
    • Never exceed the working load limit (WLL), although actual WLL may be higher.
    • Do not use for overhead lifting or hoisting.
    • The actual appearance of the product may vary from photo.

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.





EN type stainless steel bow shackle sizes are available from 4mm to 36mm which can be used in applications in saddlery, bridles, harnesses, head collars, scuba diving or sailing, hiking, cycling, camping or bushcraft and will not rust or tarnish, and so can be used in all weather conditions.

Stainless Steel European Type Large Bow Shackle Sketch

Technical Specification:

Technical Standard European Specification
Material grade 316 or 304 stainless steel
Surface finish High polished finish
Size From 4 mm to 36 mm
Technique Procedure Forged or Cast
HS code 732690
Country of origin China
Part No. Size  (mm.) Dimensions(mm.) WLL    (kg)
A    (mm) B  (mm) C    (mm) D    (mm) E   (mm)
hlt0053-0004 4 16 8 8 4 12 80
hlt0053-0005 5 20 10 10 5 15 100
hlt0053-0006 6 24 12 12 6 28 200
hlt0053-0008 8 32 16 16 8 24 320
hlt0053-0010 10 40 20 20 10 30 530
hlt0053-0012 12 48 24 24 12 36 800
hlt0053-0014 14 56 28 28 14 42 1100
hlt0053-0016 16 64 32 32 16 48 1500
hlt0053-0018 18 72 36 36 18 54 2100
hlt0053-0020 20 76 40 40 20 60 3000
hlt0053-0022 22 88 44 44 22 66 3500
hlt0053-0025 25 100 50 50 25 75 5000
hlt0053-0028 28 112 56 56 28 84 7000
hlt0053-0032 32 128 64 64 32 96 8000
hlt0053-0036 36 144 72 72 36 108 9200
