D Type Rubber Fender

Hilifting is D type rubber fender is also called semicircular fender, can be pre-curved, chamfered and drilled to aid installation at a relatively low cost and can also be cut length required, suitable for frame type wharf and shore protection of wharf.

Material: Natural Rubber

Diameter: 100mm to 500mm

Type: The inner hollow part follows a D shape, The inner hollow part follows an O shape, No inner hollow part Whole solid piece.

Application: protection medium against collision among ship-to- ship (STS), ship to quay (STQ) and ship-to-berthing (STB)

Category:
Share On

D Type Rubber Fender Specification:

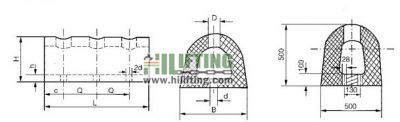

D type Rubber Fender Sketch

Product name D Type Rubber Fender
Material Natural Rubber
Size From 100mm to 500mm
Types DD-type: The inner hollow part follows a D shape.
DC-type: The inner hollow part follows an O shape.
Solid-D-type: No inner hollow part. Whole solid piece.

D Type Rubber Fender Parameter Table:

Sizes H(mm) B(mm) L(mm) Holes
D100*100*2000 100 100 2000 5
D150*150*2000 150 150 2000 5
D160*150*2500 160 150 2500 6
D200*200*850 200 200 850 3
D200*200*900 200 200 900 2
D200*200*1000 200 200 1000 3
D200*200*1500 200 200 1500 3
D250*250*1000 250 250 1000 3
D250*250*1500 250 250 1500 3
D300*300*850 300 300 850 3
D300*360*850 300 360 850 3
D300*300*900 300 300 900 2
D300*300*1000 300 300 1000 3
D300*300*1500 300 300 1500 4
D300*360*1000 300 360 1000 3
D300*360*1500 300 360 1500 4
D400*400*850 400 400 850 3
D400*400*1000 400 400 1000 3
D400*400*1500 400 400 1500 3
D500*500*850 500 500 850 3
D500*500*1000 500 500 1000 3
D500*500*1500 500 500 1500 3
