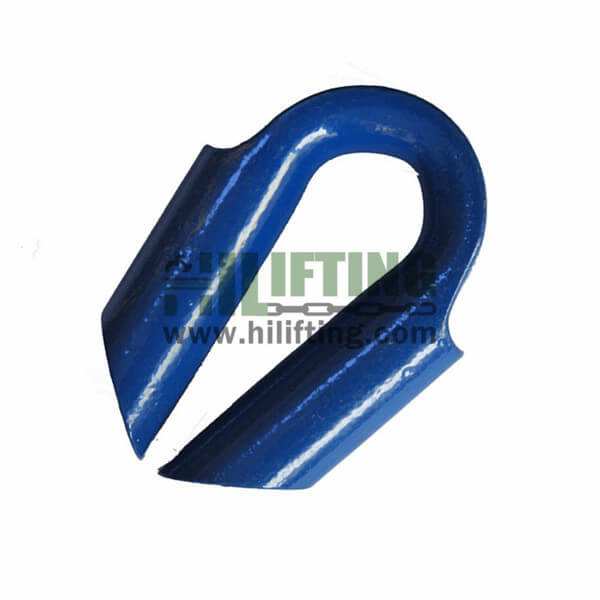

Tube Rope Thimble

Tube wire rope thimble without gusset is also known as semi-closed thimble, it is a heavy duty rope thimble with thermoplastic powder coating.
It is made from high tensile carbon steel, stamping and powder coating, meets or exceeds the performance requirements of EN13411-1 and meets the performance requirements of Federal Specification FF-T-276b Type III and EN13411-1:2002.

Material: High Tensile Steel

Surface: Hot Dipped Galvanized/Powder coated

Size: From 10mm to 52mm

Standard: EN Type

Brand: Unbranded/Generic

Application: Overhead Lifting, Lashing, Towing

Category:
Share On

Specification:

MOQ 1 Pallet, 1 Ton or 3000USD
Wire rope thimble material High Tensile Carbon Steel
Surface finish Hot Dipped Galvanized or Electro-galvanized
Wire rope thimble sizes From 10mm to 52mm
Technique Procedure Machining
Standard EN13411-1
Wire rope thimble HS code 732690

Key Features:

  • It can offer superior corrosion resistance than other wire rope thimbles, to protect wire rope, especially synthetic ropes against abrasion and deformation at the ends, longer service life.. Check out this article about: The Complete Guide To Wire Rope Thimble
  • Can be used with synthetic rope, like Spectra and Dyneema with high performance in the environments of outdoor or marine and fishing.
  • Wire rope thimble HS Code: 732690

Tube Rope Thimble Details

Tube Rope Steel Cable Thimble Packing:

Tube Rope Thimble Packages

Tube Synthetic Rope Thimble Application:

Tube Rope Thimble Applications

Different types of wire rope thimbles

Wire rope thimbles are available in a variety of strengths and materials, but mainly they come in two different duty grades.

  • Light duty: Our light duty thimbles are all zinc plated, can be used in static applications.
  • Heavy Duty: Our heavy duty rope thimbles are hot dip galvanized, which can create thicker coating than light duty thimbles, see our post on Surface Finish: 4 Common Types You Should Know
  • If you use it in high moisture or corrosive environments, recommend our stainless steel wire rope thimbles which can offer resistance to corrosion on the surface, particularly in marine applications.
  • Check out this article about The Complete Guide To Wire Rope Thimble.

US Type Heavy Duty Thimble G-414 Applications

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.

The tube nylon rope thimbles dimensions is from 10mm to 52mm, It is much stronger than other standard thimbles and offers much better protection for the rope eye of the winch rope thimble. If added gusset on the nylon rope thimbles, there will be even much stronger and prevents the sling eye from crushing under load.

Tube Rope Thimble Sketch



Part No. Diameter Rope (mm.) Weight/PC (kgs.) Dimensions(mm)
A B C D
hlt47400010 10 0.25 12 90 23 4
hlt47400012 12 0.42 15 105 27 5
hlt47400014 14 0.5 17 115 27 4
hlt47400016 16 0.6 19 120 32 6
hlt47400018 18 0.75 22 140 35 6
hlt47400022 22 1.4 25 180 45 6.3
hlt47400024 24 1.75 28 180 45 7
hlt47400026 26 2 30 195 47 7
hlt47400032 32 2.4 35 215 60 7
hlt47400038 38 3.3 45 260 70 7
hlt47400052 52 5.5 55 298 85 7
