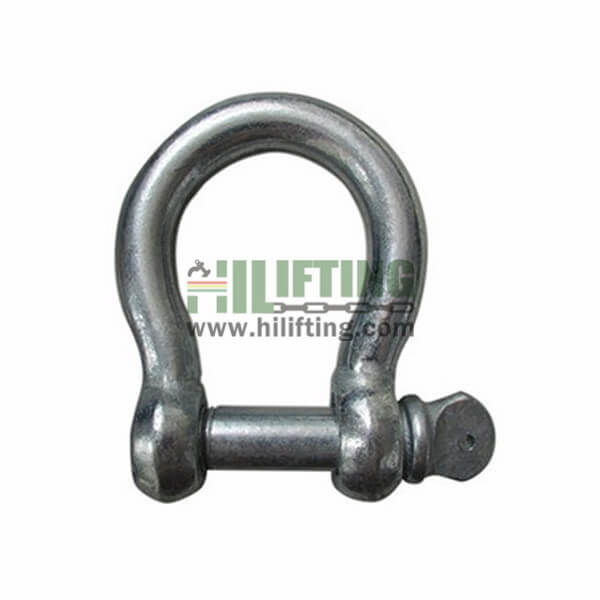

European Type Large Bow Shackle

European type large bow shackle is a commercial and cost effective alternative to the other shackles from our comprehensive range, for untested and manufactured from a base low carbon steel material.

Hilifting large bow shackle is made out of low carbon steel(C1015), with zinc plated(Electro-Galvanized), usually the M.B.S at 3 times the Safety Working Load.

Material: Low Carbon Steel C1015(#15)

Surface: Electric Galvanized

S.W.L: From 80 kgs to 8000 kgs

Size: From 5mm to 50mm

Standard: EN Type

Safety Factor: 3:1/3 x S.W.L/ Grade 3

Brand: Unbranded/Generic

Application: Not For Lifting

Category:
Share On

Specifications:

MOQ 1 Pallet, 1 Ton or 3000USD
Material Low Carbon Steel(C1015)
Surface finish Elcectro-Galvanized(Zinc Plated)
Dimensions metric From 5mm  0.08ton to 50mm 8 ton
Technique Procedure Free Forged
Safety Factor 3 : 1
HS code 732690

Descriptions:

  • Large Bow shackle pin diameter is the same as the body’s size.
  • We also have large dee shackle for your option.
  • D shackle HS Code: 732690

European Large Bow Shackle Details

Packing:

European Large Bow Shackle Package

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.

The large bow shackle dimensions metric capacity is available from 5mm shackle 0.08 ton to 50mm 8 ton shackle which meet the requirements of En Standard

Forging tolerances: +- 5%

European Large Bow Shackle Sketch



Part No. Nominal
Size(mm)		 Dimensions(mm) S.W.L. Weight
per 100 pcs
D d a c b KG KG
hlt31161005 5 5 10 19 11 80 2.2
hlt31161006 6 6 13 25 14 100 4
hlt31161008 8 8 16 32 18 200 8
hlt31161010 10 10 19 38 20 320 15
hlt31161011 11 11 22 44 23 400 20
hlt31161012 12 12 25 51 26 520 30
hlt31161016 16 16 32 64 33 800 58
hlt31161020 20 20 38 76 40 1100 92
hlt31161022 22 22 44 89 50 1500 149
hlt31161025 25 25 51 100 57 2100 230
hlt31161028 28 28 57 115 68 3000 357
hlt31161032 32 32 64 127 73 3500 495
hlt31161038 38 38 76 152 85 5000 805
hlt31161045 45 45 90 180 96 7000 1438
hlt31161050 50 50 102 200 108 8000 2012
