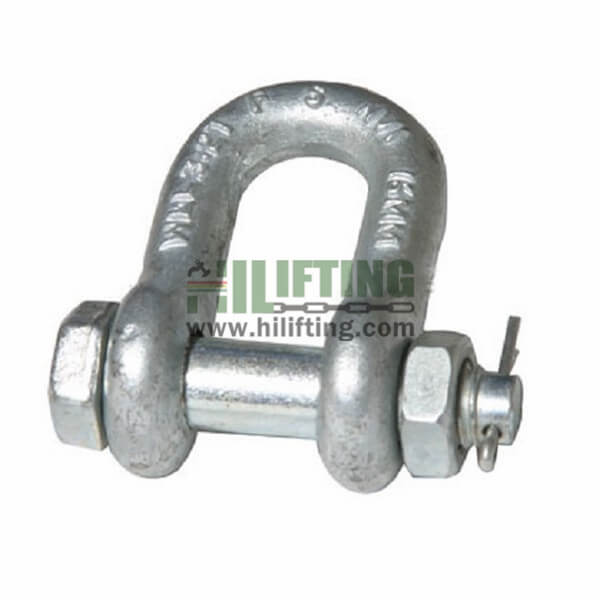

AS 2741 (Australian) Type Grade S Dee Shackle With Safety Pin

Hilifting AS2741 Type Grade S Dee Shackle With Safety Pin is manufactured a.c.c the requirements of AS 2741-2002 and European Standard EN13889-2003. They can be easily identified and traceable, for individually rated and stamped to conform to Australian Standard AS 2741-2002 “Shackles”, marked with working load limit in tonnes(i.e. W.L.L. 2T), quality grade(“M”/ “4”, “S” / “6”), batch numbered(11/12), nominal size in mm(13 mm ) and supplier identification.

Material: High Tensile Steel

Surface: Hot Dipped Galvanized

W.L.L: From 2 Tons to 55 Tons

Size: From 13mm to 63mm

Standard: AS2741 Type

Safety Factor: 6:1 Grade “S”

Brand: Unbranded/Generic

Application: Overhead Lifting, Lashing, Towing

Category:
Share On

Specification:

MOQ 1 Pallet, 1 Ton or 3000USD
Material Body Carbon Steel(#45), Screw Pin Alloy Steel
Surface finish Body: Hot Dipped Galvanized
Screw Pin: Powder Coated
Sizes From 13mm 2 ton to 50mm 55 ton shackle
Technique Procedure Body: Drop Forged / Quenched and Tempered

Screw Pin: Hot/Cold forging / Drop Forged / Quenched and Tempered
Safety Factor 6 : 1
HS code for shackle 732690

Key Features:

  • The high strength shackles sizes we offered, is from 13mm to 102mm with strengths ranging from 2 tonnes to 150 tonnes, marked Grade “S” / “6” on the top of the shackle, the mark “S” means that it is an Alloy Grade “S” for lifting shackles and the number “6” indicates that it is compliant with European standard.an all load rated shackle.
  • The safety pin is commonly powder coated in Yellow, also can be customized painting in your requests.
  • HS Code for shackle: 732690

AS 2741 Type Grade S Dee Shackle With Safety Pin Details

Workshop:

  • High quality raw material (Carbon Steel/Alloy Steel, etc.)
  • Cutting Machine
  • Air Pressing Machine
  • Punching Line
  • Air Hammer
  • Welding Machine
  • Automatic Heat Treated Machine
  • CNC Machine
  • Check this link about How the shackle is produced?

AS2741 Type Grade S Dee Shackle With Safety Pin Background

Quality Control:

Raw Material → Test Working Load Limit and Breaking Strength Test → Surface Inspection → Finishing Inspection → Magnaflux Crack Detection.

AS2741 Grade S Dee Shackle W/ Safety Pin&Nut Packing:

AS 2741 Type Grade S Dee Shackle With Safety Pin Packages

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.

AS 2741 Type Grade S Bolt d Shackle swl and sizes are the same with alloy bow shackles:

From 13mm 2 ton to 50mm 55 ton shackle, meets the requirements of AS 2741-2002.

Forging tolerances: +- 5%

AS2741 Type Grade S Dee Shackle With Safety Pin Sketch

Part No. Nominal
Size(mm)		 WLL Dimensions(mm) Approx Weight
C (Tonnes) A B F G kg
hlt2741215013 13 2 21 16 33 41 0.36
hlt2741215016 16 3.2 27 19 40 51 0.76
hlt2741215019 19 4.7 32 22 48 60 1.23
hlt2741215022 22 6.5 37 25 54 71 1.79
hlt2741215025 25 8.5 43 29 60 81 2.78
hlt2741215029 29 9.5 46 32 67 90 3.75
hlt2741215032 32 12 52 35 76 100 5.31
hlt2741215035 35 13.5 57 38 84 113 6.98
hlt2741215038 38 17 60 44 92 124 9.44
hlt2741215044 44 25 73 51 110 146 15.39
hlt2741215051 51 35 83 57 127 171 23.71
hlt2741215057 57 42.5 95 63 143 181 29.01
hlt2741215063 63 55 105 70 152 203 44.58
