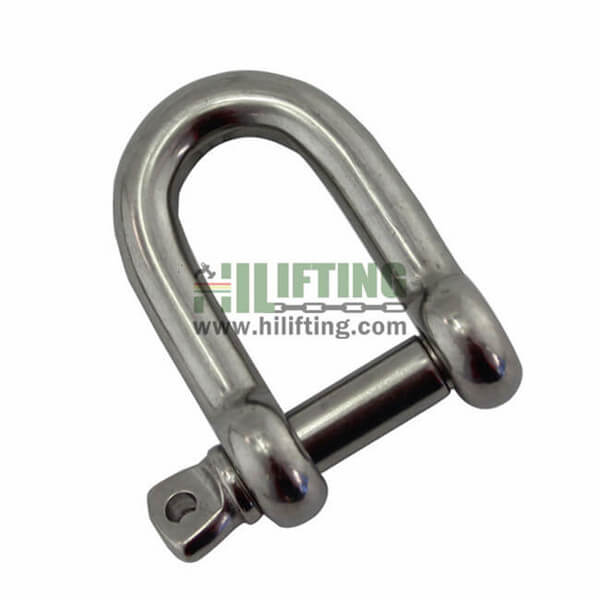

European Type Stainless Steel D Shackle
European type stainless steel dee shackle is made from marine-grade stainless steel, which is strong and hard-wearing and will not harm humans, birds, or mammals that might be adversely affected by zinc in the less-expensive galvanised fittings. It is perfect for highly corrosive environments,can be used for straight line applications, we also have European Type Stainless Steel Bow Shackle for your option.
Material: AISI 316 / AISI 304
Surface: High polished finish
Size: From 4 mm to 38 mm
Type: Stainless Steel Large D Shackle
Brand: Unbranded/Generic
Application: Lifting, Lashing, Towing
European Type Stainless Steel D Shackle Descriptions:
| MOQ | 1 Pallet, 1 Ton or 3000USD |
| Material | grade 316 or 304 stainless steel |
| Surface finish | High polished finish |
| Sizes | From 4 mm to 38 mm |
| Technique Procedure | Cast |
| HS code | 732690 |
- Different types of shackles have different applications, check this article: What Are The Different Types of Shackles?
- EN type stainless steel dee shackle HS Code: 732690
European Type Stainless Steel D Shackle Packing:
- Useful d shackle inspection checklist:
- Shackles must always be inspected for wear, distortion, and damage before use. If the pin or bow is worn, distorted or damaged, discard the shackle.
- Never exceed the working load limit (WLL), although actual WLL may be higher.
- Do not use for overhead lifting or hoisting.
- The actual appearance of the product may vary from photo.
Shipping and Payment Term:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
EN type stainless steel d shackle sizes are available from 4 mm to 38 mm, made from grade 316 stainless steel for maximum corrosion resistance.
| Part No. | Size (mm.) | Dimensions(mm.) | ||||
| D | A | B | C | D1 | ||
| hlt0052-0004 | 4 | 4 | 16 | 8 | 8 | 4 |
| hlt0052-0005 | 5 | 5 | 20 | 10 | 10 | 5 |
| hlt0052-0006 | 6 | 6 | 24 | 12 | 12 | 6 |
| hlt0052-0008 | 8 | 8 | 32 | 16 | 16 | 8 |
| hlt0052-0009 | 9 | 9 | 36 | 18 | 18 | 10 |
| hlt0052-0010 | 10 | 10 | 40 | 20 | 20 | 10 |
| hlt0052-0012 | 12 | 12 | 48 | 24 | 24 | 12 |
| hlt0052-0014 | 14 | 14 | 56 | 28 | 28 | 14 |
| hlt0052-0016 | 16 | 16 | 64 | 32 | 32 | 16 |
| hlt0052-0018 | 18 | 18 | 72 | 36 | 36 | 18 |
| hlt0052-0019 | 19 | 19 | 76 | 38 | 38 | 20 |
| hlt0052-0020 | 20 | 20 | 80 | 40 | 40 | 20 |
| hlt0052-0022 | 22 | 22 | 88 | 44 | 44 | 22 |
| hlt0052-0025 | 25 | 25 | 100 | 50 | 50 | 24 |
| hlt0052-0028 | 28 | 28 | 112 | 56 | 56 | 27 |
| hlt0052-0030 | 30 | 30 | 120 | 60 | 60 | 30 |
| hlt0052-0032 | 32 | 32 | 128 | 64 | 64 | 33 |
| hlt0052-0038 | 38 | 38 | 152 | 76 | 76 | 36 |
