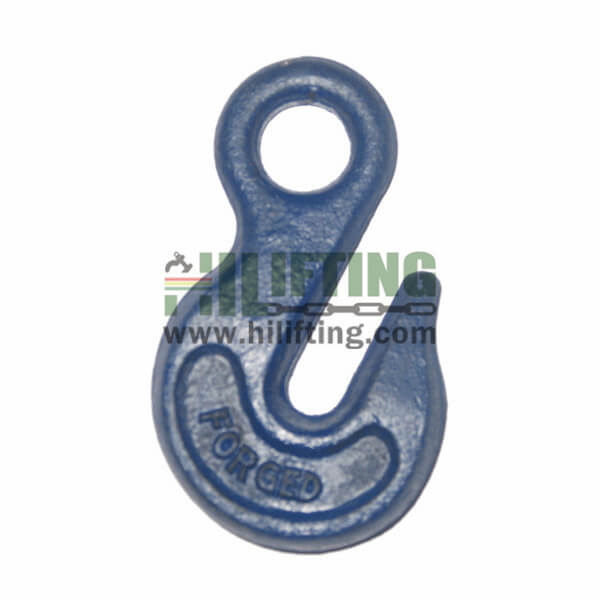

US Type Eye Grab Hook 323

Eye grab hook uses a special shallow throat opening to grab a link of the chain and prevent it from slipping, it is commonly used to load binding, shorten or hold as an end on a transport chain. The throat allows for easy and secure engages the chain between the links for quick and non-slip handling, we also have clevis grab hook 330 for your option.

Material: High Tensile Steel C1045(#45) / Alloy Steel

Surface: Electric Galvanized / Hot Dipped Galvanized / Powder Coating / Yellow Chromate

W.L.L: From 2600 lbs to 24700 lbs

Size: From 1/4″ to 3/4″

Standard: US Type

Safety Factor: 6:1 or 4:1

Brand: Unbranded/Generic

Application: Overhead Lifting, Lashing, Towing

Category:
Share On

Specifications:

MOQ 1 Pallet, 1 Ton or 3000USD
Material Alloy Steel / High Tensile Steel
Surface finish Hot Dipped Galvanized/Powder coated
Sizes From From 1 4 clevis grab hook to 3 / 4
Technique Procedure Body : Drop Forged / Quenched and Tempered

Latch : Stamping
Safety Factor 5 : 1 / 4:1 Grade 43 or Grade 70
HS code 732690

Chain Eye Grab Hooks 323 Descriptions:

  • Eye grab hooks are not designed for overhead lifting, but instead, they are commonly used for load securely with transport chains, required a chain fitting for them to be attached to a chain
  • Stamped with “G70” or “G43” for easy identified and very common on transport chain and high test chain ends, specifically for grade 70 transport chain and grade 43 high test chain.
  • Made to meet the performance requirements of U.S. Federal Specification, with a proof load tested at 2 times the Working Load Limit and Breaking Load is 6 times the Working Load Limit
  • Eye grab hook 323 HS code: 732690

US Type Eye Grab Hooks 323 Details

Chain Grab Towing Eye Hook Workshop:

US Type Eye Grab Hooks 323 Background

Types of Rigging Hooks

  • Eye hooks are the permanent connections to the slings, they are very flexible to position the hooks and attach them to the load.
  • Clevis hooks feature a U shaped clevis pin or bolt to allows shackles, chain, or other rigging accessories to load secure connections.
  • Swivel hooks, there are two types of swivel hooks, swivel hook for positon and swivel hook with bearing. The swivel hook for position is used to position the hook onto the pick point, not designed to load while rotating. Swivel hook with bearing has a bearing on the top and allows the hook to rotate while loading to prevent twisting the lifting slings.
  • Check this article for more about rigging hooks.

Shipping and Payment Term:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.

Eye grade 70 grab hook suit for chain sizes from 1/4″ to 3/4″ meet the requirements of U.S. Federal Specification RR-C-271D.

US Type Eye Grab Hooks 323 Sketch



Part No. Chain Size (in.) W.L.L.(lbs.) Dimensions(in.) W.T.(lbs.)
323C 323A 323C 323A B E R
hlt3230014C hlt3230014A 1/4 2600 3500 0.50 0.34 1.97 0.28
hlt3230516C hlt3230516A 5/16 3900 4700 0.56 0.44 2.25 0.45
hlt3230038C hlt3230038A 3/8 5400 7100 0.66 0.50 2.56 0.79
hlt3230716C hlt3230716A 7/16 7200 8750 0.75 0.56 2.94 1.19
hlt3230012C hlt3230012A 1/2 9200 12000 0.88 0.66 3.38 1.80
hlt3230058C hlt3230058A 5/8 13000 15800 1.06 0.78 4.11 3.30
hlt3230034C hlt3230034A 3/4 20200 24700 1.38 0.94 5.16 6.00
